Acmeda Piuma Folding Arm Awning

What It Is

The Acmeda Piuma Folding Arm Awning represents the pinnacle of European design and engineering. It combines exceptional mechanical performance, refined aesthetics, and advanced automation options to create an adaptable outdoor shading solution for residential and commercial spaces.

Category: Outdoor Awnings – Folding Arm Series

Unique Identifiers: Fusion Arm System with dual stainless steel PVC-coated cables, dynamic torsion spring technology, and integration with the Automate Pulse 2 Hub for smart control.

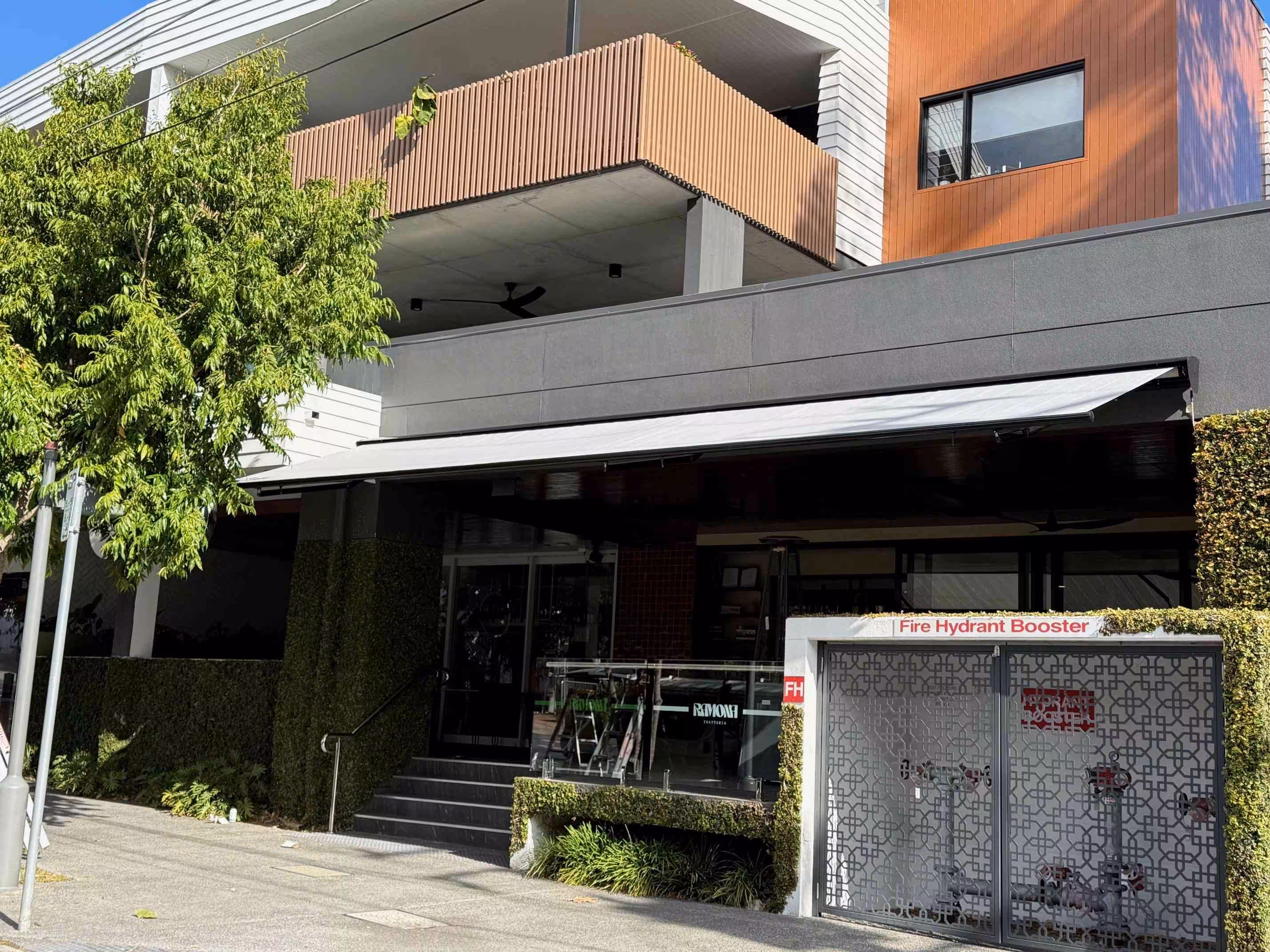

scaled_Folding Arm 1
scaled_Folding Arm 2
scaled_Folding Arm 3

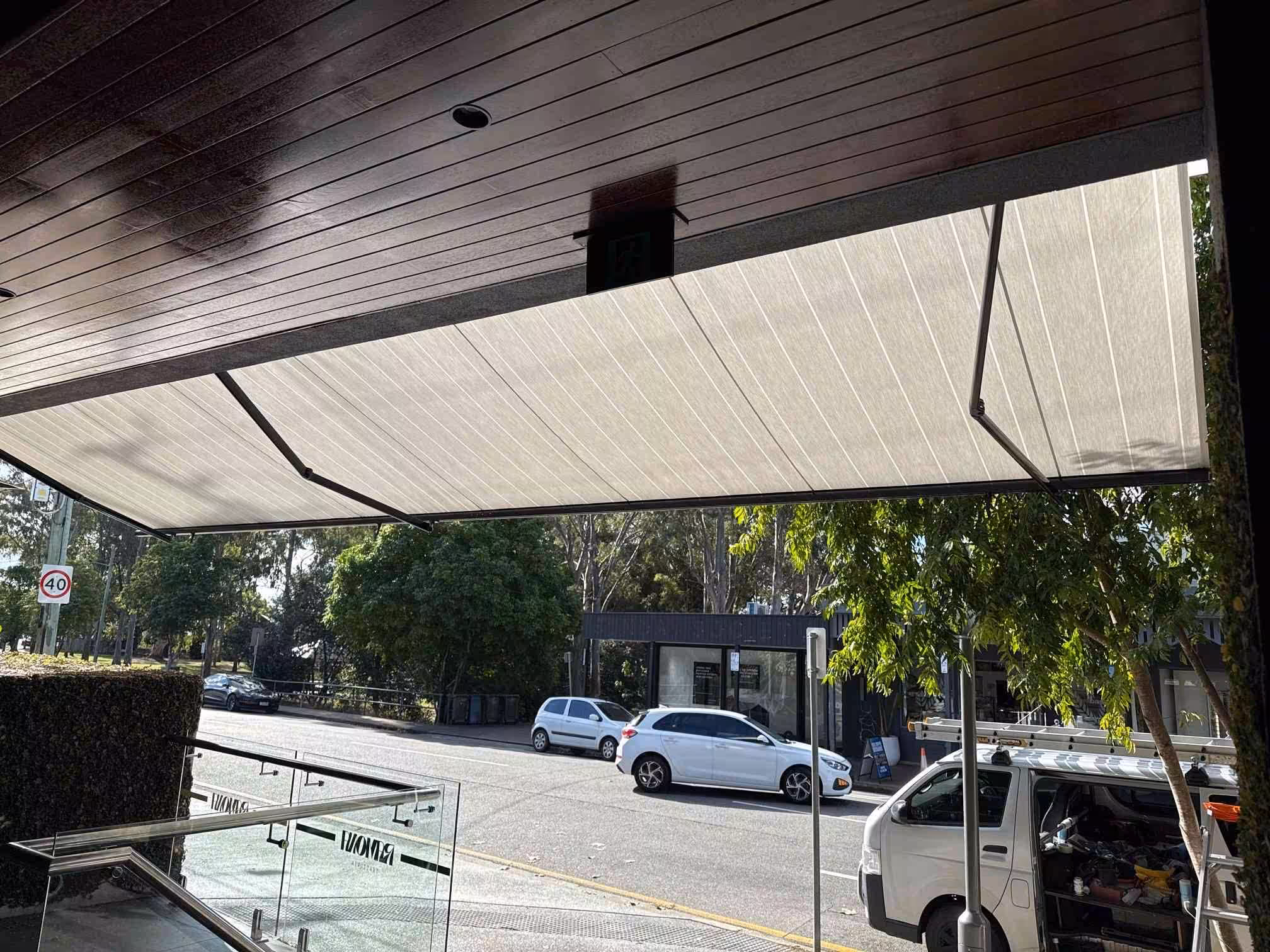

scaled_Folding Arm 4

Primary Functions:

  • Provides shade and UV protection for patios, courtyards, and outdoor entertaining areas.
  • Expands usable outdoor space with adjustable coverage.
  • Enhances comfort by reducing glare and radiated heat.

Secondary Benefits:

  • Adds architectural value and European style.
  • Minimises fabric wear through constant arm tension.
  • Offers precise shade control via adjustable pitch settings.

What it Does

Common Use Cases:

  • Residential patios, decks, and balconies.
  • Commercial outdoor dining areas.
  • Shopfront awnings or café shading systems.

Excels In:

  • Medium-sized outdoor applications.
  • Environments requiring flexible projection and smart automation.

Configurations Available:

  • Geared (crank handle).
  • Motorised system (single or multi-channel remote control).

Typical Applications

Features and Benefits

FeatureBenefit
Fusion Arm System with dual stainless steel cablesMaintains superior tension and prevents fabric sagging.
Dynamic Arm Torsion systemPrevents fabric damage, ensures constant tension, and improves longevity.
Adjustable arm pitch (1° increments)Enables precise control of shade coverage and airflow.
Maximum span 7000mm / projection 3000mmProvides large, flexible coverage for most outdoor areas.
Motorised operation with ARC technologyEnables smooth, quiet operation and smart control integration.
Powder-coated aluminium frameEnsures long-lasting durability and corrosion resistance.
Wide fabric selectionAllows personalisation of colour, texture, and UV performance.
Optional wind, light, or vibration sensorsAutomatically retracts awning to prevent wind damage.
European engineeringCombines reliability, style, and mechanical precision.

Construction

  • Material: Extruded aluminium frame with stainless steel cable tensioning.
  • Arms: Dual PVC-coated stainless steel cables with spring-loaded tension.
  • Fabric: High-quality acrylic fabrics available in various colours and weaves.
  • Fixings: Marine-grade stainless steel for corrosion resistance.

Options & Upgrades

  • Frame Colours: White or Graphite.
  • Hood Options:
    • Roll-formed hood in Gloss White, Black, Primrose, or Stone Beige.
    • Acmeda aluminium hood for premium finish.
  • Control Options:
    • Geared crank handle (manual).
    • Motorised operation (single or 15-channel remote).
    • Smart device integration via Automate Pulse 2 Hub (ARC).
  • Automation Add-ons:
    • Wind, light, or vibration sensors.
    • Programmable timers and scene automation via app.

Limitations of the Product

  • Size Restrictions:
    • Maximum span: 7000mm.
    • Maximum projection: 3000mm.
  • Environmental Considerations:
    • Not waterproof; intended for shade only.
    • Recommended width at least 1000mm wider than projection.
  • Performance Boundaries:
    • Not suitable for high-wind or exposed coastal zones without sensor integration.
  • Unsuitable Applications:
    • Permanent wet-weather protection or heavy rainfall areas.

What’s the Warranty

  • Fabric: Manufacturer’ warranty.
  • Hardware: 5-year hardware warranty (subject to use and maintenance).
  • Coverage Includes: Frame, arms, and mechanical operation.
  • Excludes: Fabric fading or damage caused by wind or neglect.
  • Customer Responsibilities: Keep arms and joints clean, test retraction regularly, and avoid use during high wind.

How It Is Measured

  • Measurement Points:
    • Width measured across mounting brackets.
    • Projection measured from wall to front bar when extended.
  • Tools Required: Laser measure, tape, level.
  • Common Mistakes:
    • Measuring only fabric area, not bracket-to-bracket.
    • Not accounting for pitch angle clearance.
  • Special Notes:
    • Ensure sufficient fixing height to allow pitch adjustment.

How It Is Installed

  • Preparation: Check wall substrate and structure for load capacity.
  • Sequence:
    • Fix wall brackets or fascia mounts.
    • Install torsion bar and arm assemblies.
    • Attach front bar and tension fabric.
    • Connect motor or crank system.
    • Adjust pitch angle and test operation.
  • Tools & Fixings: Drill, level, stainless fasteners, Allen keys, torque wrench.
  • Safety: Use appropriate PPE; ensure secure working at heights.
  • Application Notes:
    • Always calibrate motor limits after installation.
    • Test sensor automation after setup.

Compliance & Legal Requirements

  • Building Code: Complies with NCC external shading structure requirements.
  • Council Approvals: Not required unless part of a structural addition.

Lead Time & Availability

  • Standard Lead Time: 10–15 working days.
  • Seasonal Variation: 15–20 working days during high-demand periods.
  • Factors Affecting Lead Time: Fabric type, colour selection, and motor/sensor availability.
  • Quick-Ship Options: Standard colours and manual units available within 7 working days.
