Straight Drop Winder

What It Is

The Straight Drop Winder Awning is a premium outdoor shading system that offers maximum flexibility, superior functionality, and aesthetic refinement. Designed for large openings, it delivers controlled shade and privacy with smooth, crank-operated precision.

Category: Outdoor Fabric Awnings

Unique Identifiers: Advanced crank winder mechanism, dual installation configurations (with or without side channels), and multi-point locking system for customizable positioning.

scaled_Straight Drop
scaled_1 - Channel Guide - Winder - Face Fit - Headbox
scaled_2 -Channel Guide - Winder - Face Fit - Headbox - Inside View
scaled_3 - Straight Drop - No Channels - Winder - Face Fit - No Headbox

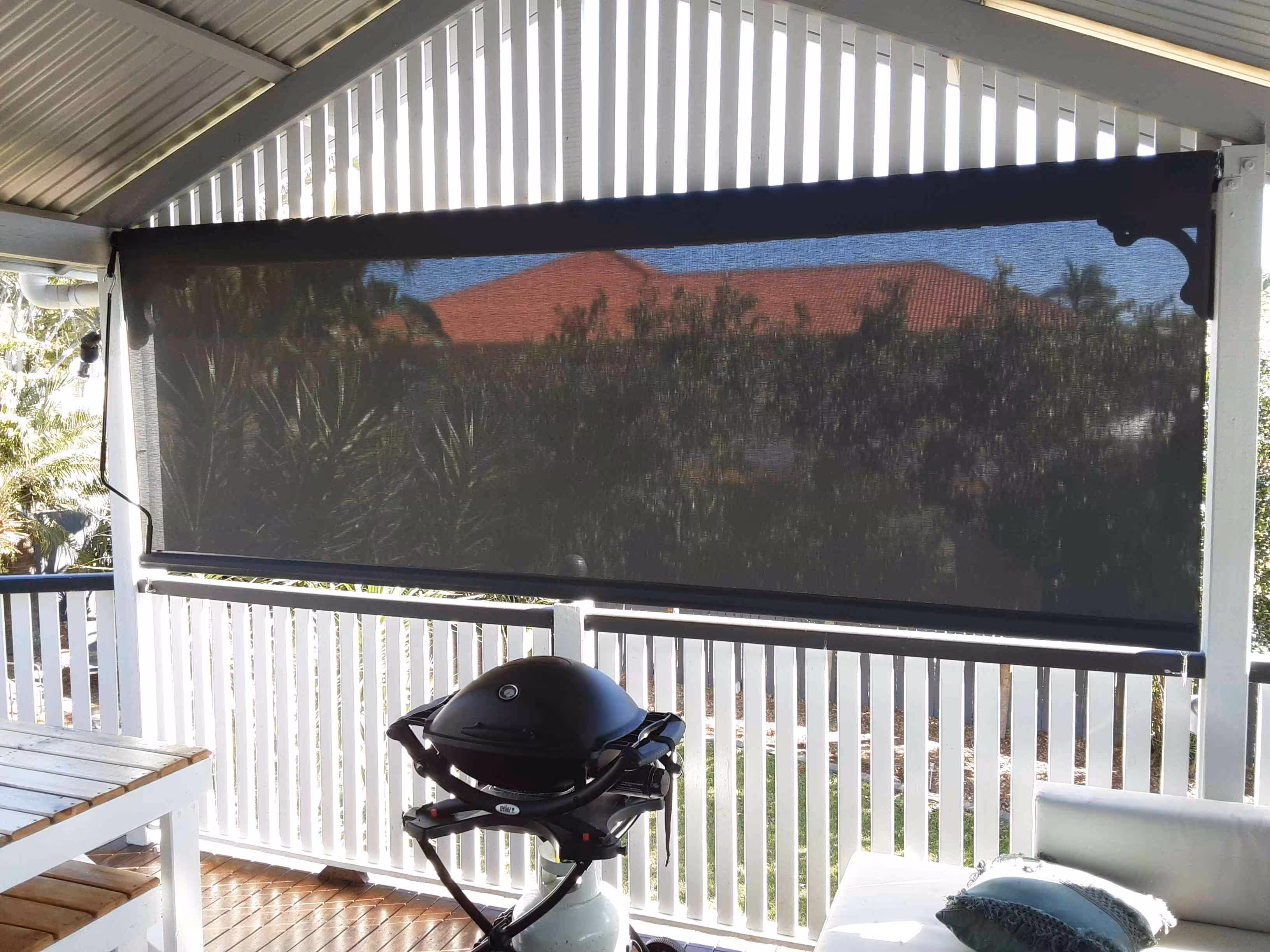

scaled_5 Straight Drop - No Channels - Winder - No Headbox - Inside View

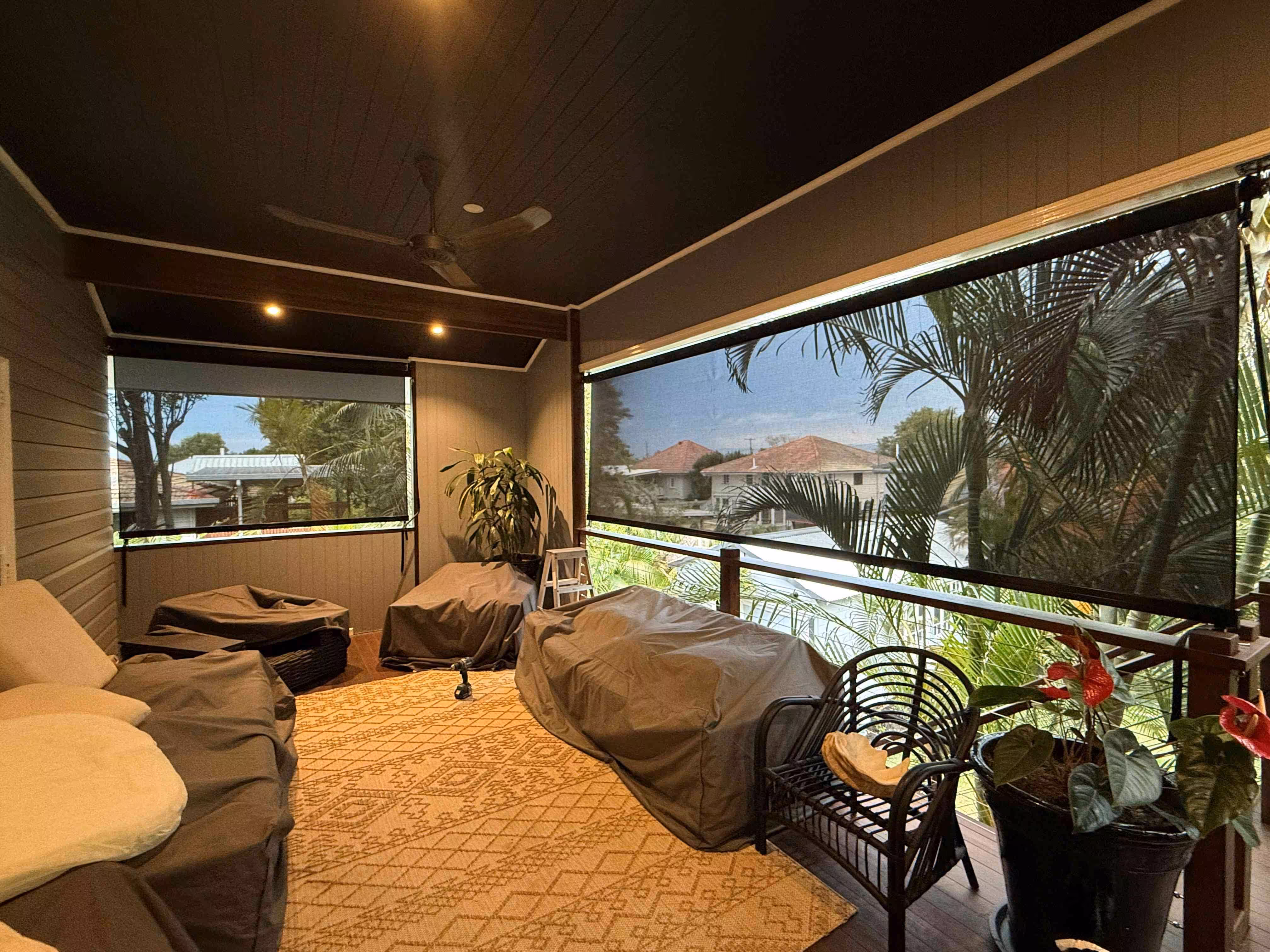

scaled_Awning Straightdrop - Jack 1

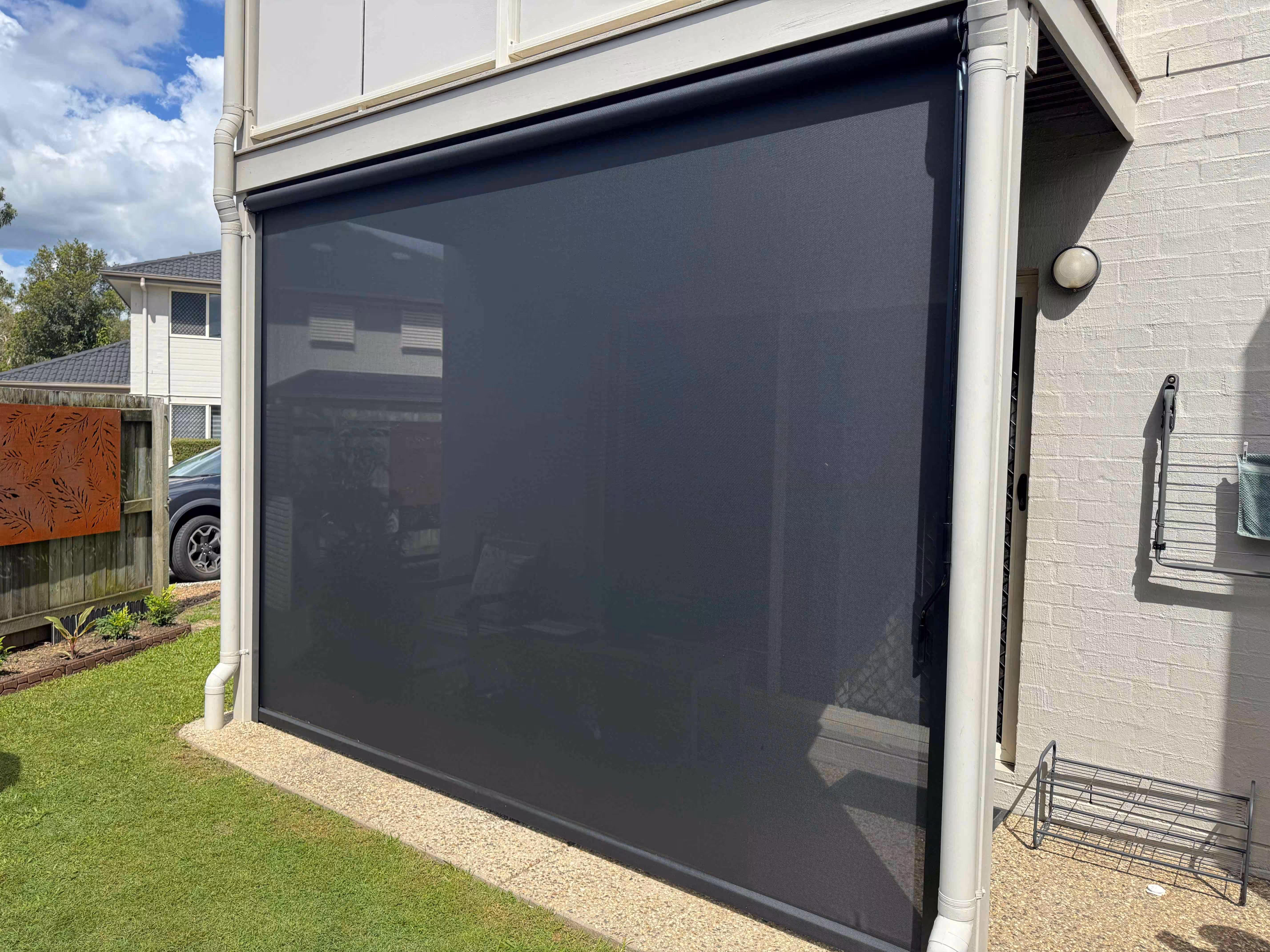

scaled_Crank Operated Straight Drop + Side Channels

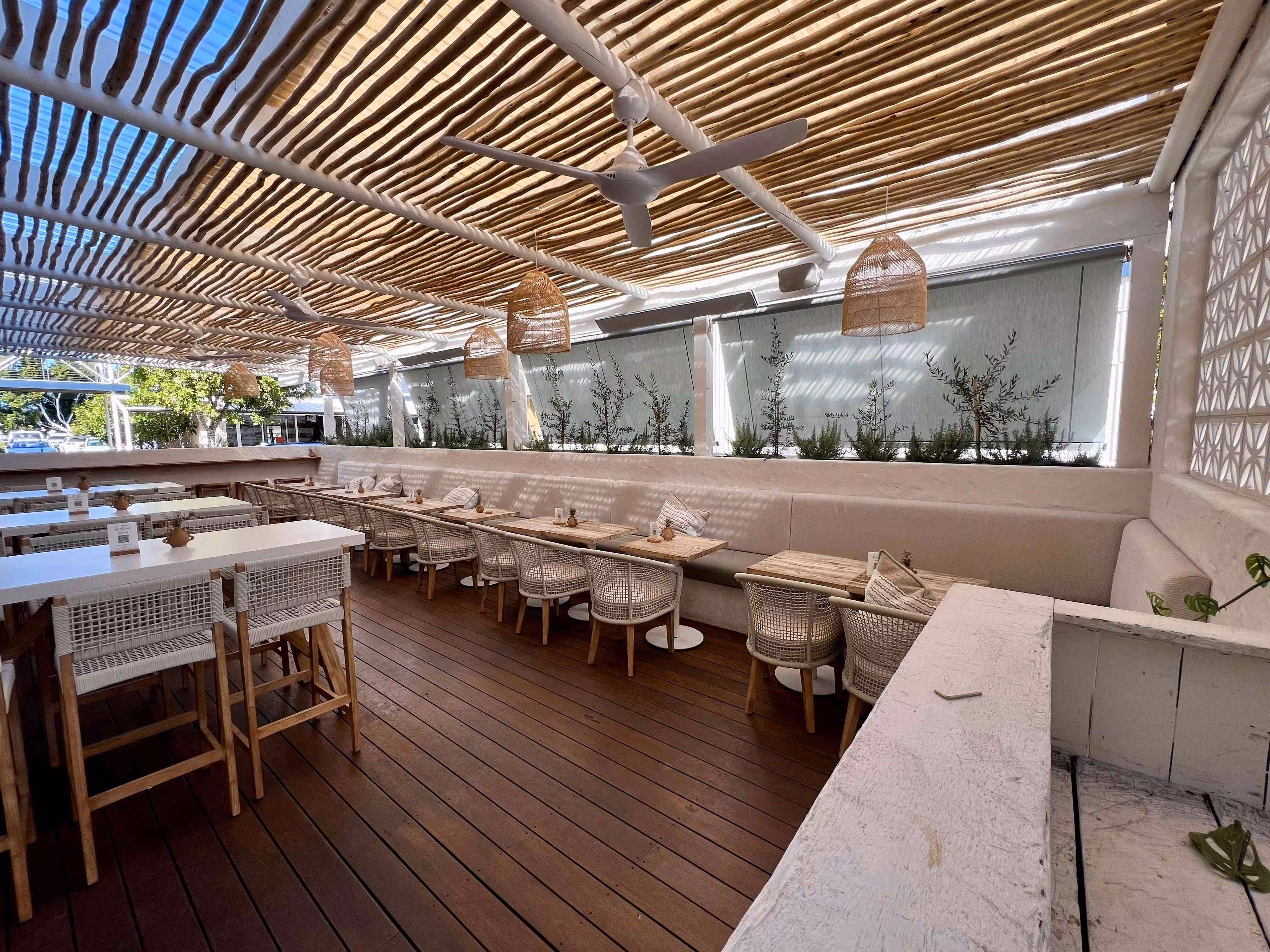

scaled_Straight Drop Awnings 1

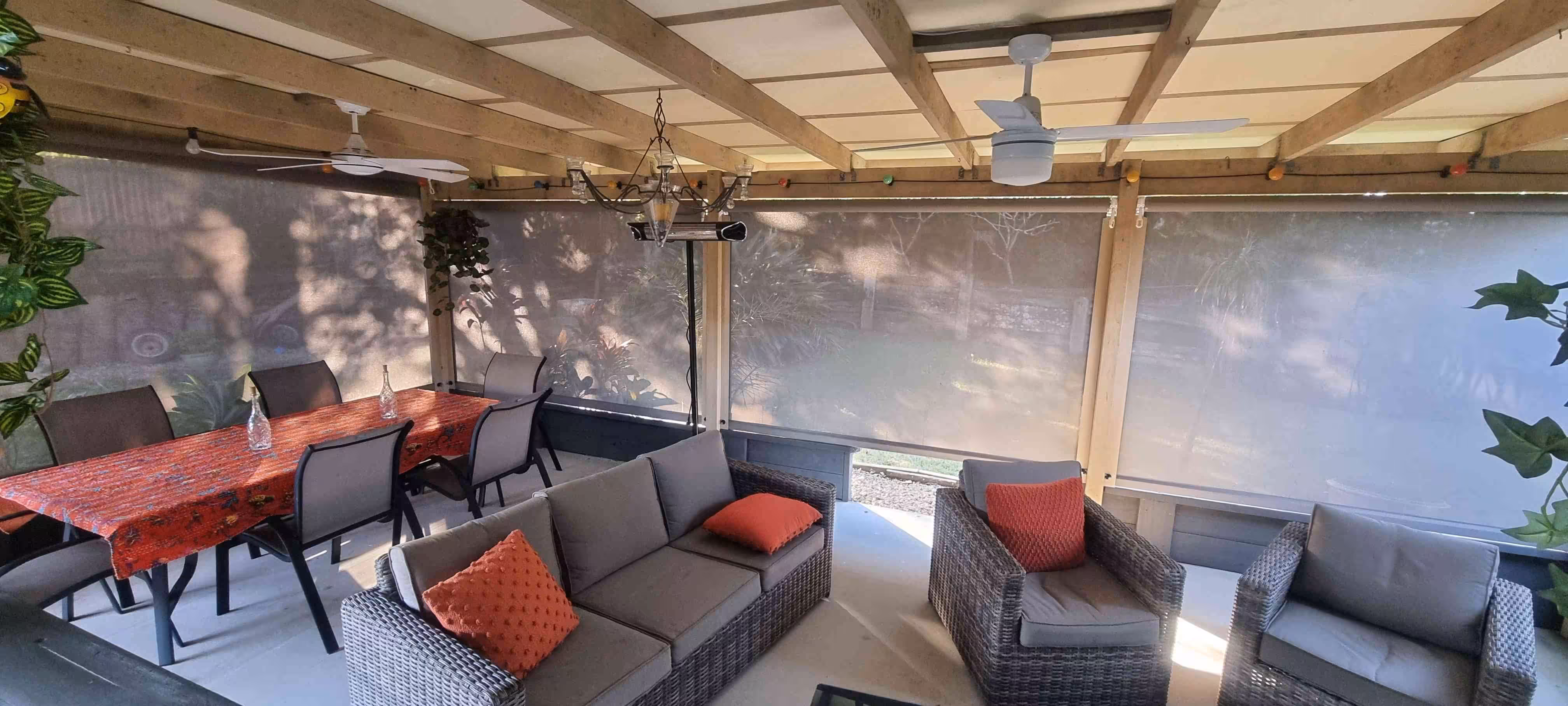

scaled_20210728_155859

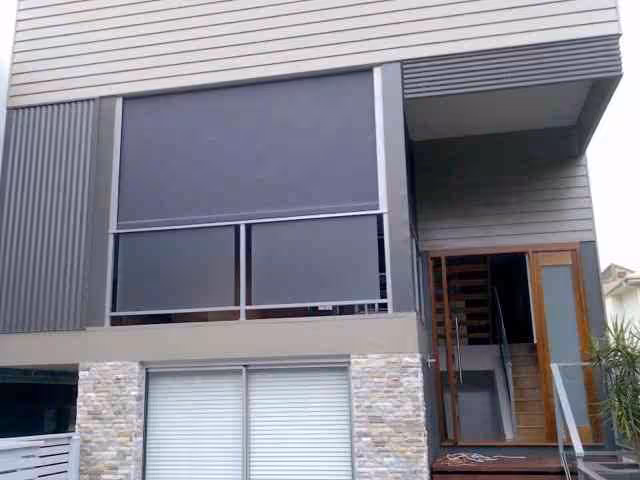

scaled_Sunmaster Awning 009

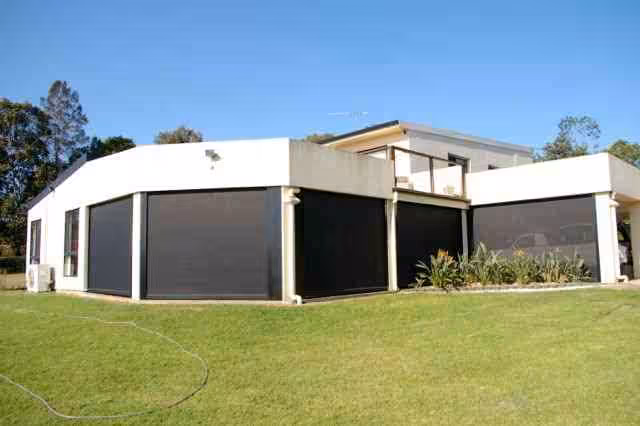

scaled_Sunmaster Awning 012

Primary Functions:

  • Provides effective solar protection and privacy.
  • Shields outdoor areas from harsh sunlight, glare, and UV rays.
  • Allows flexible adjustment of light and airflow.

Secondary Benefits:

  • Enhances energy efficiency by reducing heat transfer.
  • Improves outdoor usability year-round.
  • Offers smooth manual operation with precision control.

What it Does

Common Use Cases:

  • Patios and decks.
  • Alfresco dining areas.
  • Balconies and verandas.
  • Café and commercial outdoor seating zones.

Excels In:

  • Large openings requiring variable shade control.
  • Spaces needing both privacy and aesthetic enhancement.

Configurations Available:

  • Without Side Channels – flexible positioning via strap & staple or dog clip & staple.
  • With Side Channels – enhanced stability and multi-stop functionality via 22-pin locking system.

Typical Applications

Features and Benefits

Feature Benefit
Crank-operated winder system Provides smooth and precise control of awning height.
Max width 5100mm x 3000mm drop Accommodates large areas with ease.
Two mounting configurations (with or without side channels) Offers flexibility for varied site conditions and aesthetic preferences.
2-pin locking system Ensures secure, stable positioning even in breezy conditions.
Multiple locking pins or staples available Allows customers to select custom stopping points for tailored shade control.
Stainless steel components Delivers durability and corrosion resistance.
Powder-coated or stainless bracket options Ensures longevity and compatibility with diverse designs.
Fabric-wrapped bottom bar Creates a clean, seamless finish.
Extensive fabric options (excluding clear PVC) Supports broad design and functional requirements.

Construction

  • Frame: Aluminium structure with powder-coated finish.
  • Brackets: Available in powder-coated or stainless steel.
  • Locking Pins: Stainless steel for maximum strength and weather resistance.
  • Fabric: UV-resistant outdoor-grade fabric (no clear PVC).
  • Mechanism: Integrated crank system for tension and position control.

Options & Upgrades

  • Winder Colours: Black, White.
  • Side Channel Colours: Gloss White, Black, Primrose, Stone Beige.
  • Standard Hood Colours: Gloss White, Primrose, Black, Paperbark.
  • Semi-Cassette Hood Colours: Black, White, Monument, Surfmist.
  • Bracket Material Options: Powder-coated or stainless steel.
  • Custom Colours: Full Dulux and Interpon powder-coat charts.
  • Add-ons: Additional locking pins or staples for multi-stop operation.

Limitations of the Product

  • Size Restrictions:
    • Max width: 5100mm.
    • Max drop: 3000mm.
  • Environmental Considerations:
    • Designed for sun protection and privacy but not heavy rain or wind exposure.
  • Performance Boundaries:
    • Not suitable for high-wind zones.
  • Unsuitable Applications:
    • Fully enclosed spaces or constant moisture environments.

What’s the Warranty

  • Components: 2-year warranty.
  • Powder coating: 7-year warranty.
  • Fabric: Manufacturer’s warranty.
  • Coverage Includes: Frame, mechanism, coating, and structural integrity.
  • Excludes: Fabric fading due to neglect, misuse, or improper installation.
  • Customer Responsibilities: Maintain cleanliness of fabric and operate crank gently to preserve mechanism life.

How It Is Measured

  • Measurement Points:
    • Width from outer bracket to bracket.
    • Drop from hood to base of awning in fully extended position.
  • Tools Required: Tape measure, level, and laser measurer.
  • Common Mistakes:
    • Forgetting to include hood or cassette size.
    • Measuring to uneven or obstructed surfaces.
  • Special Notes:
    • Confirm whether side channels or strap fixings are used before final measurement.

How It Is Installed

  • Preparation: Confirm wall material and structural strength.
  • Sequence:
    • Mount brackets and hood/cassette.
    • Fix awning roller and tension system.
    • Secure side channels or strap fixings.
    • Adjust crank tension and locking pins.
    • Test operation and locking alignment.
  • Tools & Fixings: Drill, screws, silicone, and level.
  • Safety: Use PPE and ensure stable access on ladders or scaffolds.
  • Application Notes:
    • Always check crank direction and clearance during operation.

Compliance & Legal Requirements

  • Building Code: Complies with NCC performance standards for shading systems.
  • Council Approvals: Generally not required.

Lead Time & Availability

  • Standard Lead Time: 10–15 working days.
  • Seasonal Variation: May extend to 20 working days during high-demand periods.
  • Factors Affecting Lead Time: Custom colours, cassette selection, or complex installations.
  • Quick-Ship Options: Available for standard colours and configurations within 7 working days.
