Pivot Arm Awnings

What It Is

The Pivot Arm Awning is a comprehensive exterior shading solution engineered for superior performance, versatility, and architectural appeal. Designed for both residential and commercial applications, it provides exceptional sun protection and thermal control while enhancing exterior aesthetics.

Category: Outdoor Fabric Awnings

Unique Identifiers: Advanced pivot arm design allowing varied projection angles, internal or external control options, and motorisation capability.

Primary Functions:

  • Provides superior sun and heat protection.
  • Shields interior furnishings from harmful UV rays.
  • Reduces interior temperatures and energy consumption.

Secondary Benefits:

  • Enhances property comfort and ventilation.
  • Prevents fading of carpets, furniture, and fittings.
  • Improves aesthetic appeal of both residential and commercial facades.

What it Does

Common Use Cases:

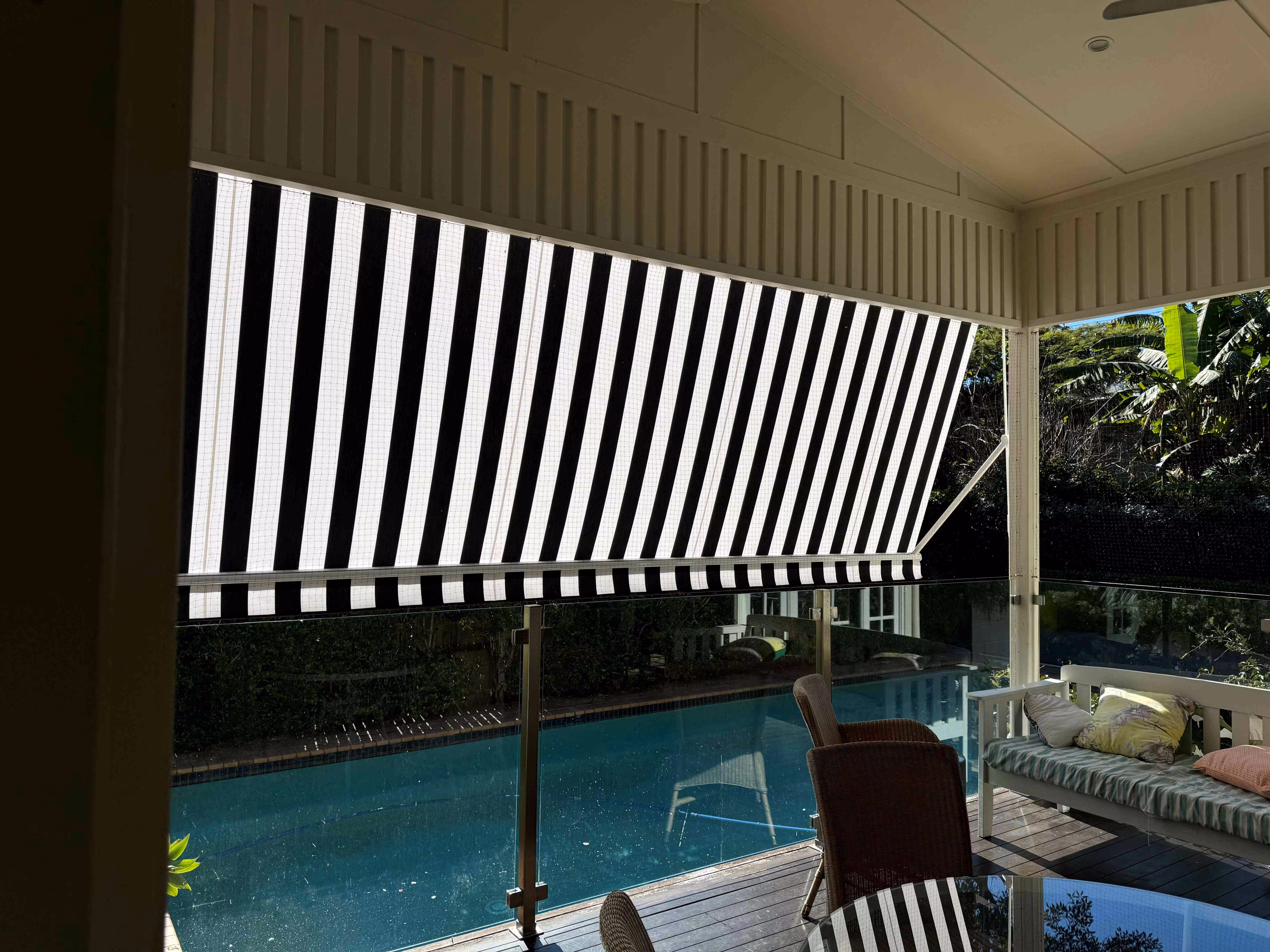

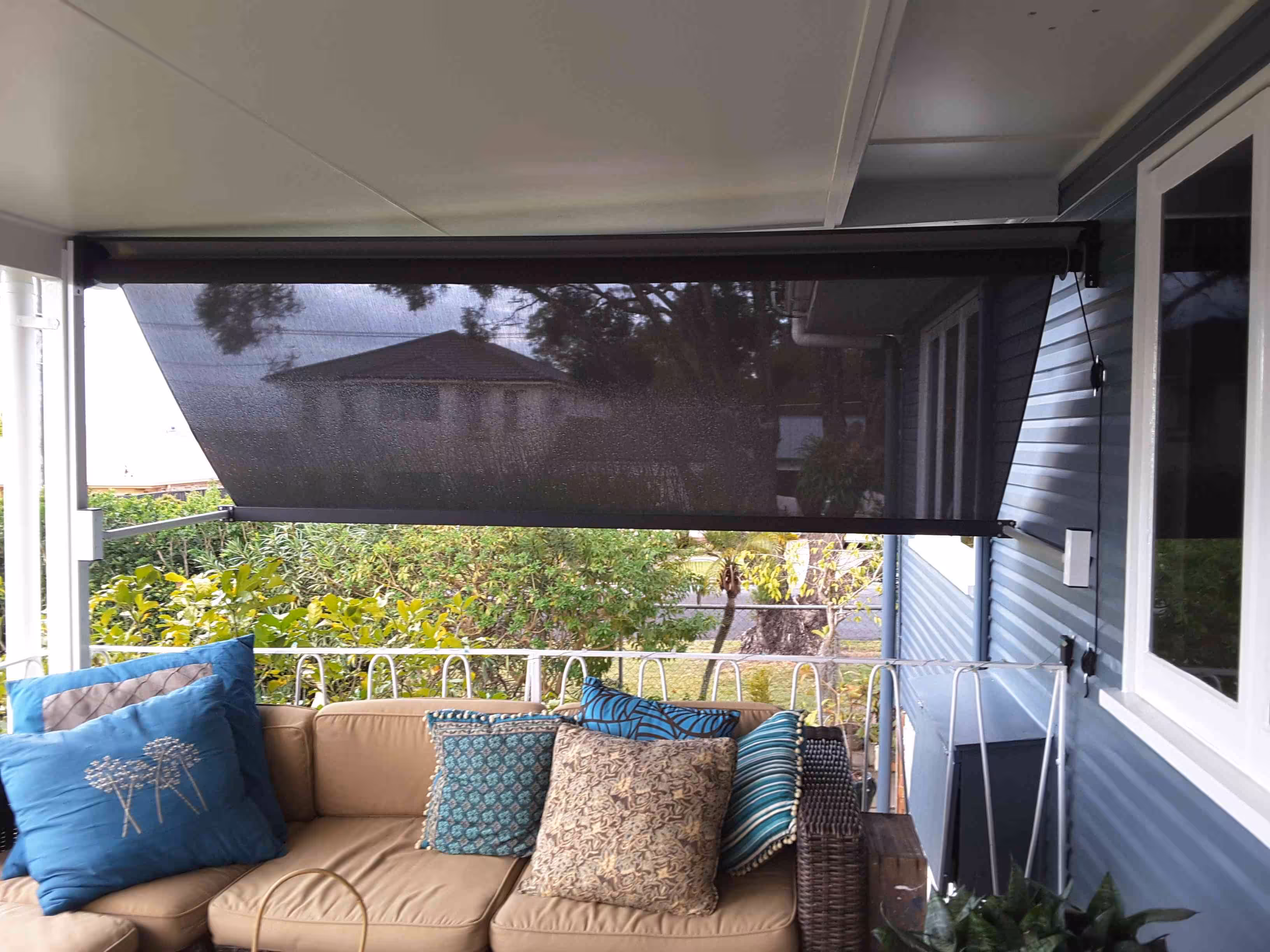

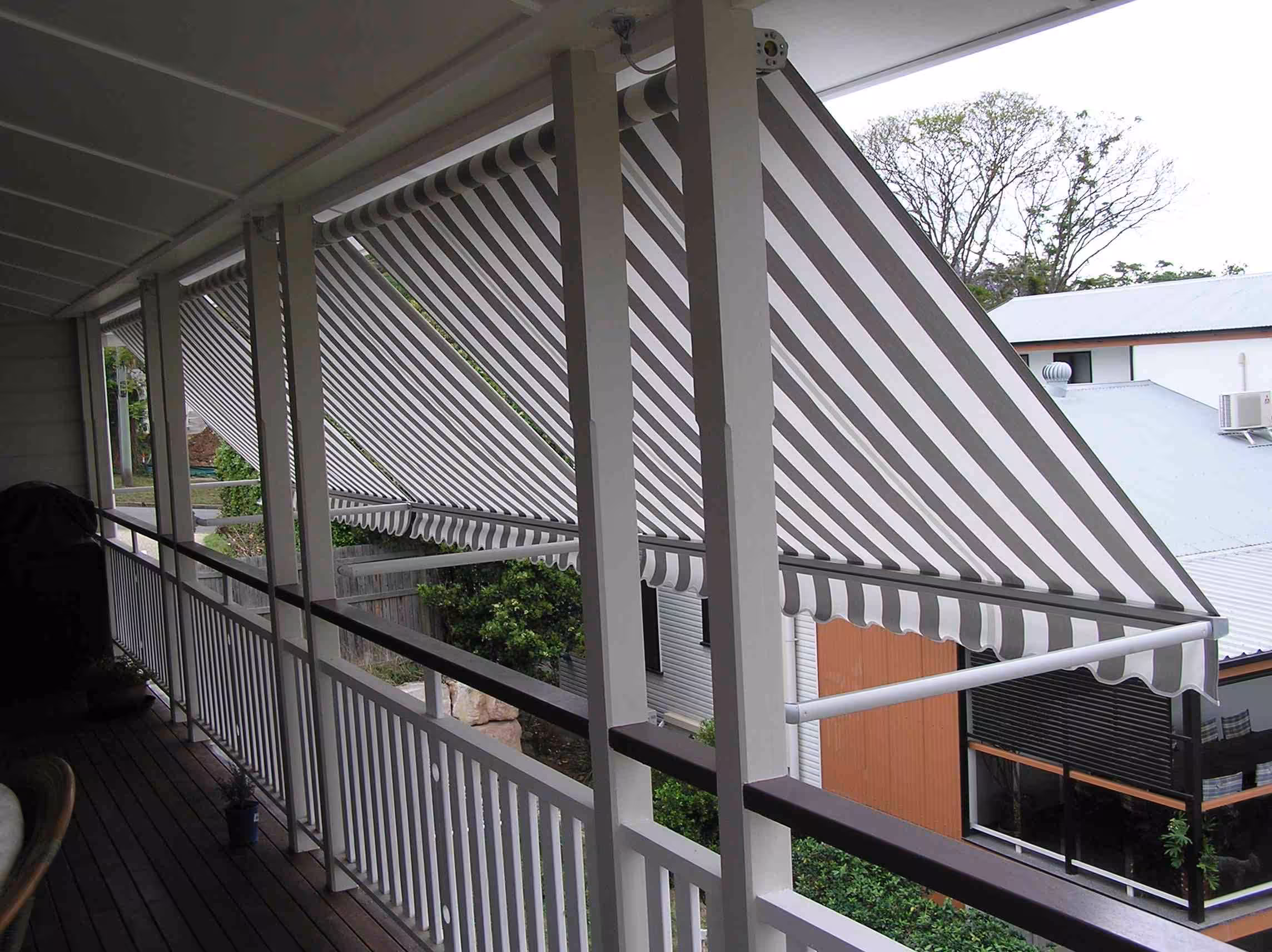

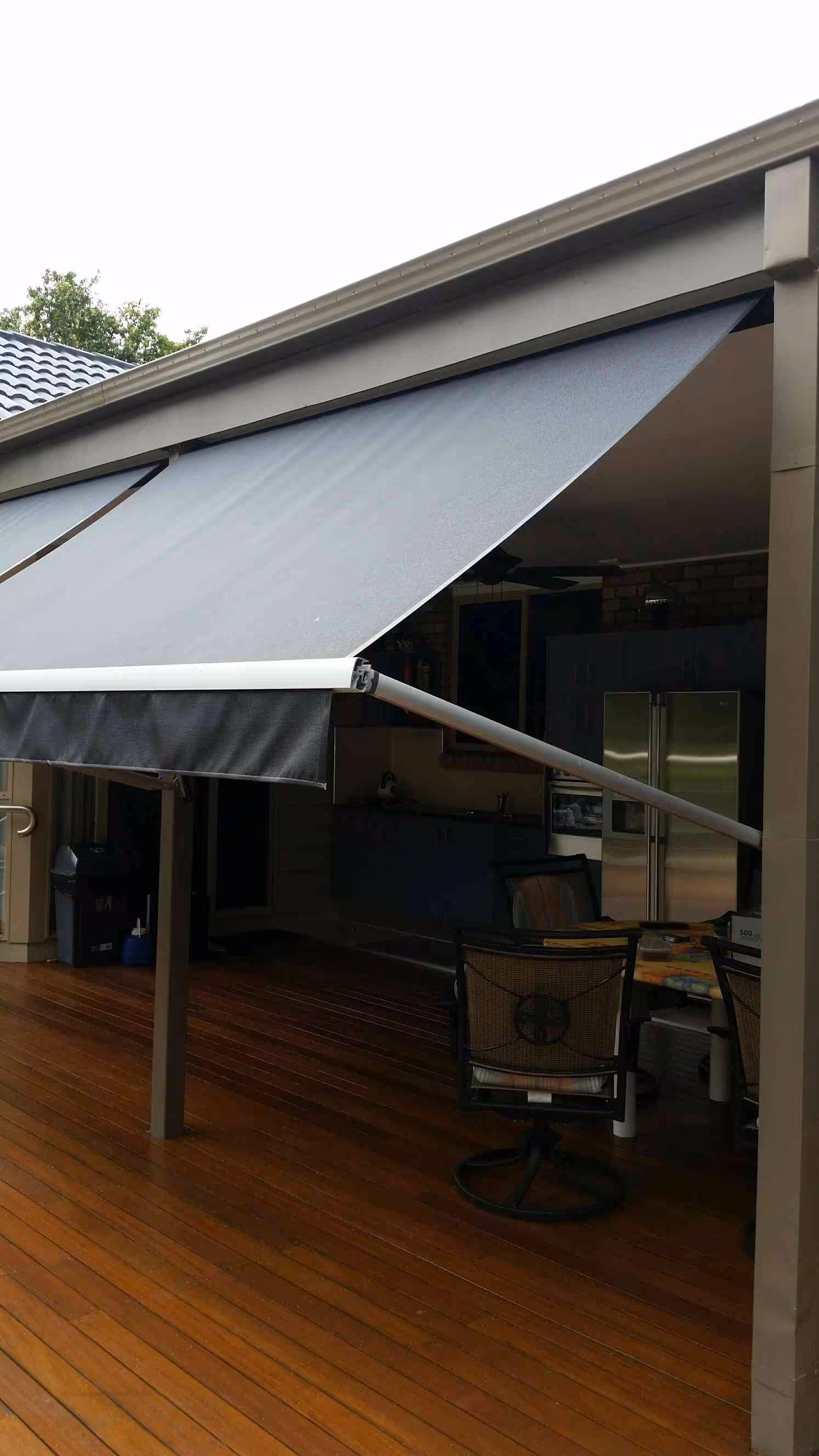

  • Verandas and patios.
  • First and second-story windows.

Excels In:

  • Multi-level properties requiring interior or motorised control.
  • Commercial settings where solar protection and architectural design merge.

Configurations Available:

  • Fixed hood or open roller design.
  • Cord and reel internal, crank, or motorised operation.

Typical Applications

Features and Benefits

Feature Benefit
Pivot arm mechanism Allows fabric to project outward, maintaining airflow and light while providing shade.
Multiple control options (cord, crank, internal, motorised) Provides flexibility for different building layouts and user preferences.
UV-stabilised outdoor fabric Protects interiors from harmful ultraviolet rays and prolongs furniture life.
Maximum width 4100mm, drop 2400mm Accommodates a wide range of window and façade dimensions.
Custom colour powder-coated hardware Matches property aesthetics and design palettes.
Optional valance styles – straight, scalloped, minimalist Offers aesthetic flexibility to suit architectural styles.
Clear anodised arm finish Ensures durability and corrosion resistance.
Motorisation-ready Enables seamless integration with smart home systems.

Construction

  • Frame & Arms: Powder-coated aluminium and stainless-steel fittings.
  • Fabric: UV-blocking outdoor-grade material engineered for heat reflection and fade resistance.
  • Arms: Pivot design with clear anodised finish for durability.
  • Assembly: Mechanically fixed components for easy maintenance and strong performance in high-heat environments.

Options & Upgrades

  • Colours:
    • Standard: Gloss White, Textured Black, Primrose, Stone Beige, Monument.
    • Custom: Full Dulux and Interpon powder-coat range.
  • Control Options:
    • Cord and reel (internal).
    • Crank mechanism.
    • Motorised automation.
  • Valance Styles:
    • Straight.
    • Scalloped.
    • Minimalist (no valance).
  • Hardware Options:
    • Matching hood colours: Gloss White, Primrose, Black, Monument, Stone Beige.
    • Clear anodised arm finish standard.

Limitations of the Product

  • Size Restrictions:
    • Max width: 4100mm.
    • Max drop: 2400mm.
  • Environmental Considerations:
    • Regular maintenance recommended in coastal or high-salt areas.
  • Performance Boundaries:
    • Not designed for extreme wind zones or continuous rain exposure.
  • Unsuitable Applications:
    • Permanent weather cover installations or enclosed spaces with limited airflow.

What’s the Warranty

  • Components: 2-year warranty.
  • Powder coating: 7-year warranty.
  • Fabric: Manufacturer’s warranty.
  • Coverage Includes: Manufacturing defects, material integrity, coating, and operational performance.
  • Excludes: Damage from neglect, improper installation, or failure to maintain.
  • Customer Responsibilities: Clean fabric and arms periodically; operate gently to avoid mechanical stress.

How It Is Measured

  • Measurement Points:
    • Width from bracket to bracket; drop to extended projection point.
  • Tools Required: Tape measure, laser measure, level.
  • Common Mistakes:
    • Not allowing clearance for arm projection or valance.
    • Measuring before confirming control side.
  • Special Notes:
    • Check for obstructions above and below awning path before installation.

How It Is Installed

  • Preparation: Confirm wall structure, height, and alignment.
  • Sequence:
    • Mount hood or top brackets.
    • Install roller tube assembly.
    • Fix pivot arms and adjust projection angle.
    • Fit control system (cord, crank, or motor).
    • Test operation and tension settings.
  • Tools & Fixings: Drill, screws, silicone, and level.
  • Safety: Use PPE and stable ladders/scaffolds.
  • Application Notes:
    • Use corrosion-resistant fixings for exterior applications.
    • Ensure smooth movement without fabric obstruction.
  • Building Code: Complies with NCC standards for external shading systems.
  • Council Approvals: Not typically required for residential installs.

Lead Time & Availability

  • Standard Lead Time: 10–15 working days.
  • Seasonal Variation: May extend to 20 working days during peak demand.
  • Factors Affecting Lead Time: Custom colours, motorisation, and high-volume orders.
  • Quick-Ship Options: Standard configurations and colours available within 7 working days.
