Trinidad Louvred Aluminium Awning

What it Is

The Trinidad Louvred Aluminium Awning is a high-performance architectural shading system designed to provide exceptional control over light, heat, and privacy. It represents an intelligent and stylish solar management solution suitable for both residential and commercial settings.

Category: Aluminium Louvred Awnings

Unique Identifiers: Modular aluminium design with adjustable or fixed blade configurations (45° closed or 60° open), offering flexibility for solar and thermal management.

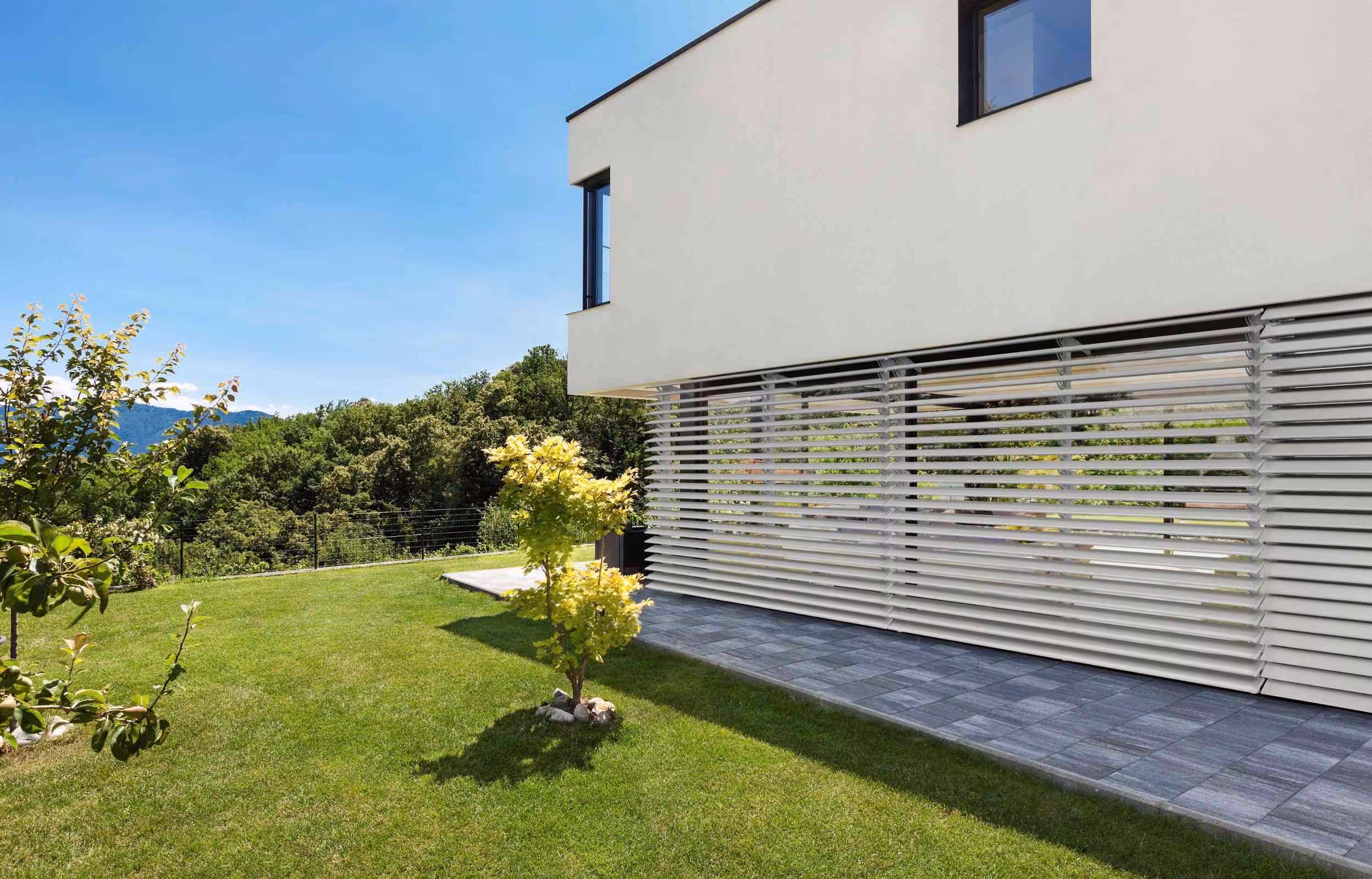

scaled_Trinidad

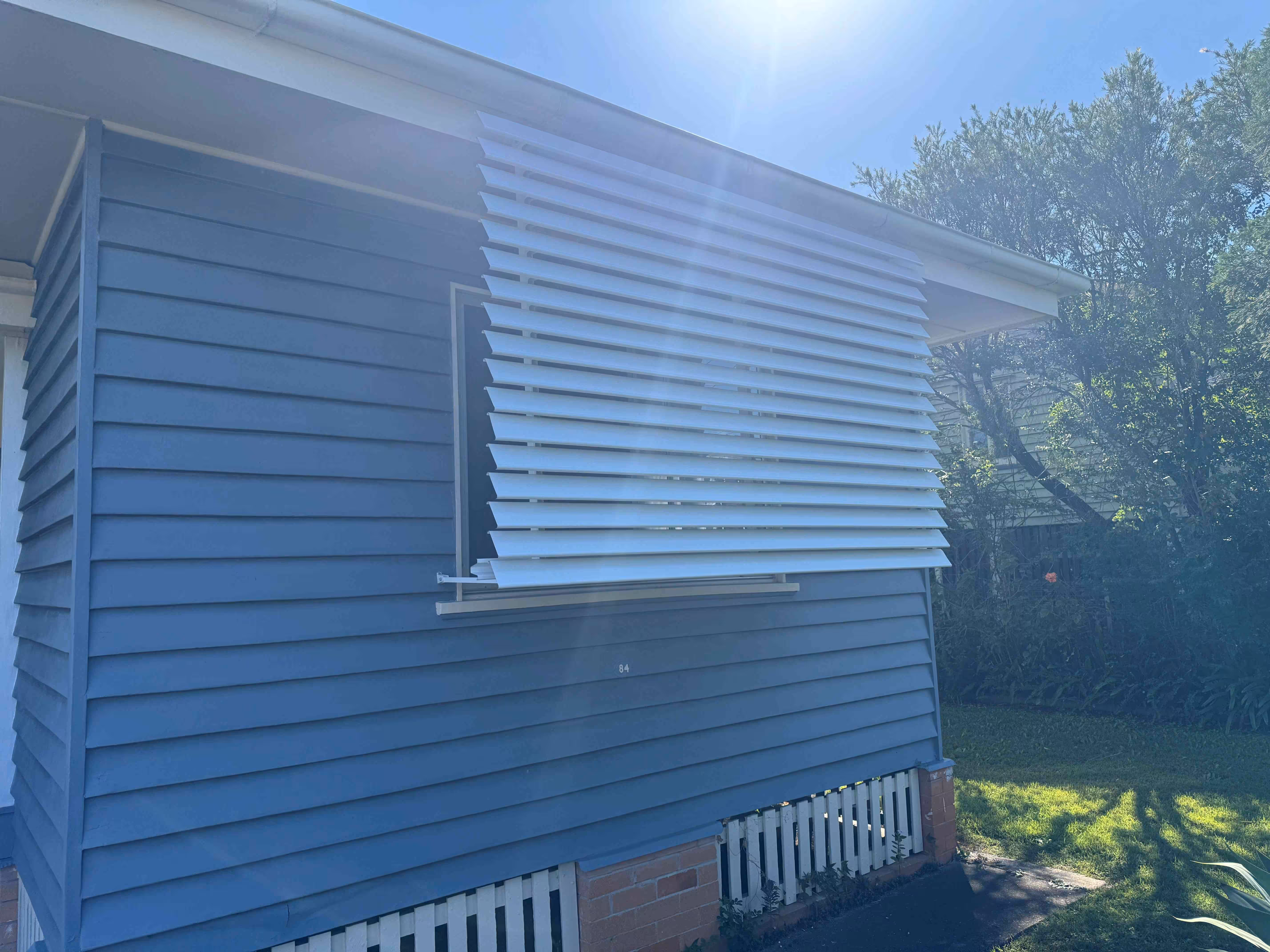

scaled_Trinidad 3

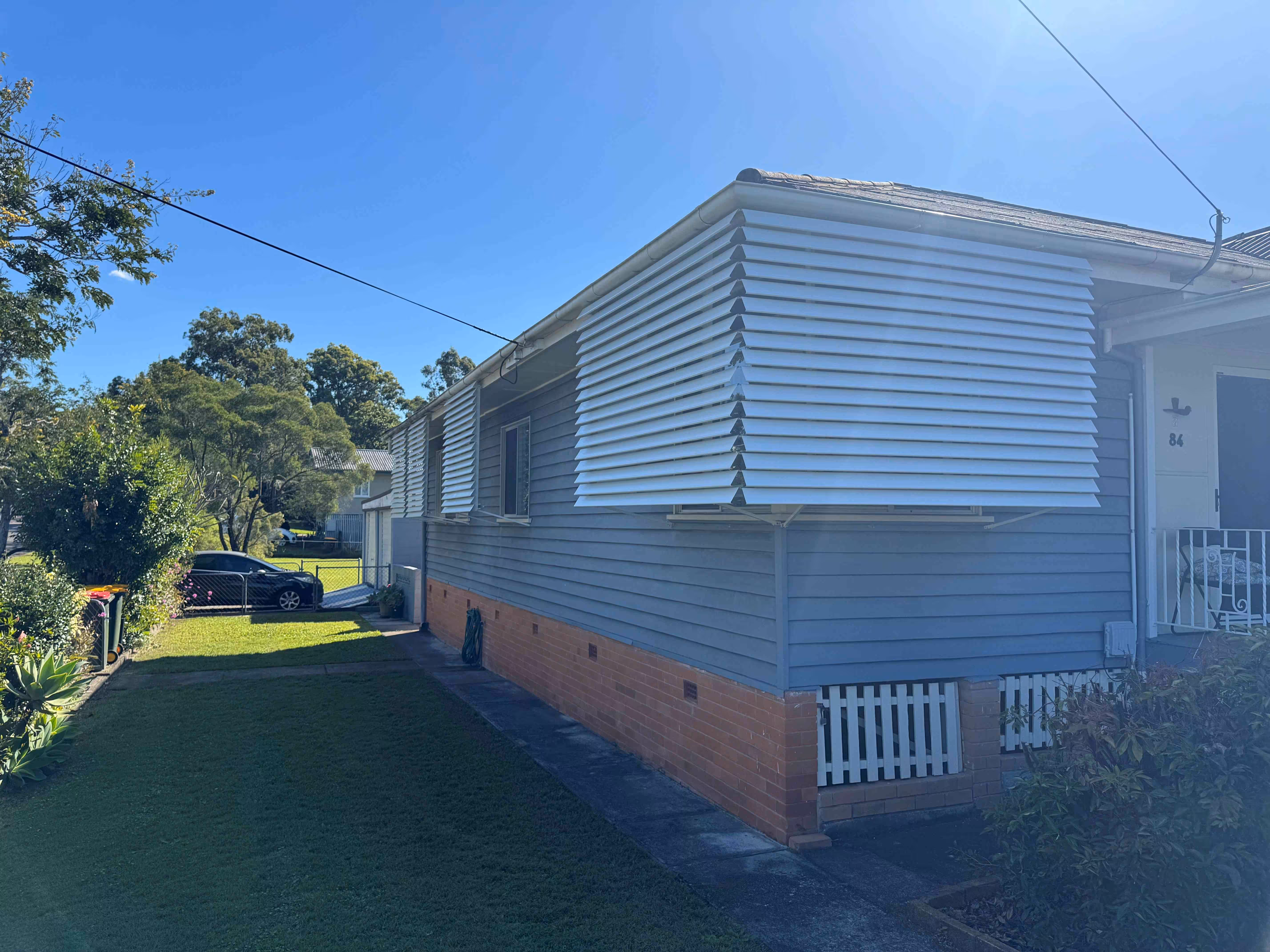

scaled_Trinidad 2

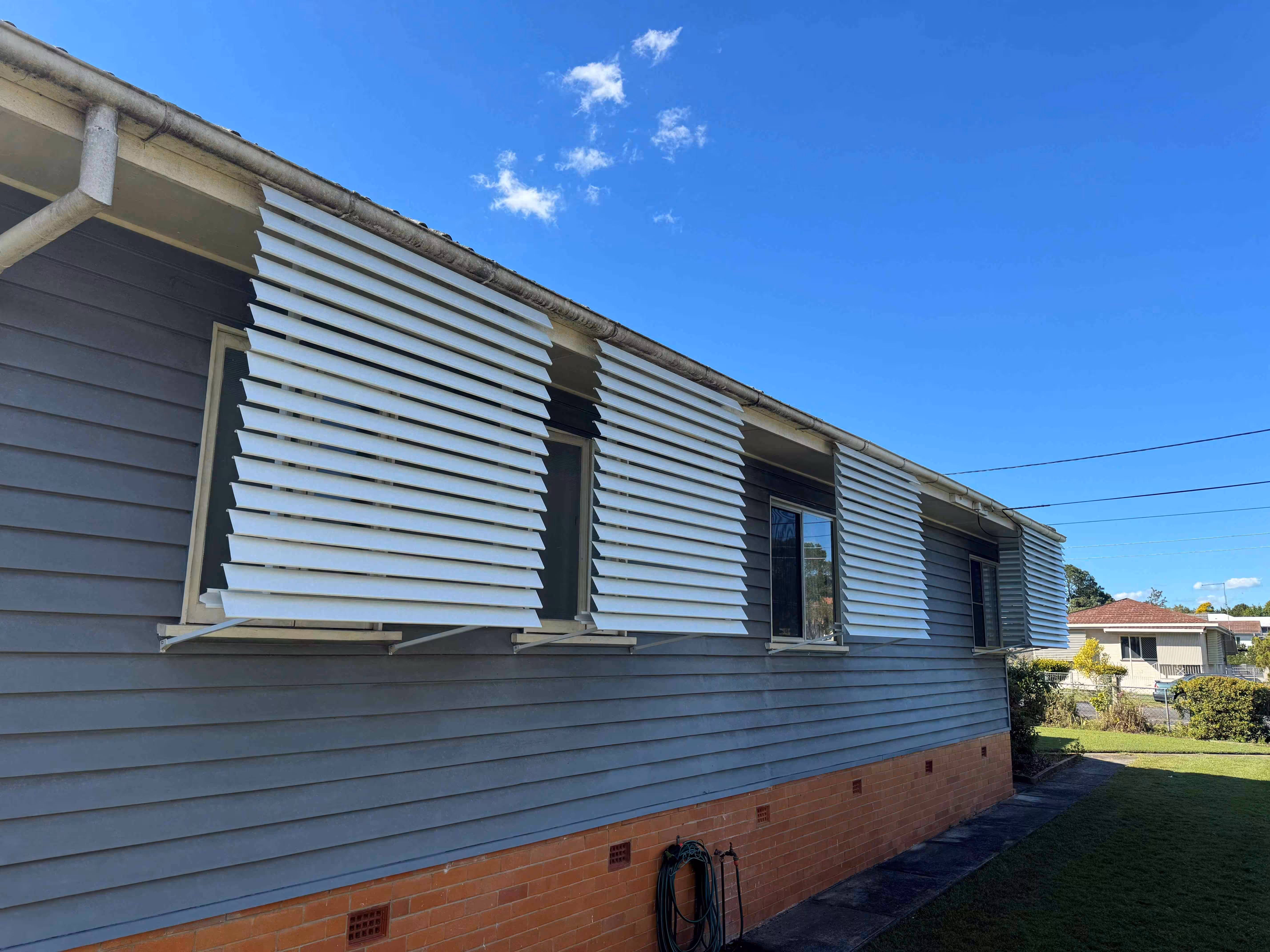

scaled_Trinidad 1

Primary Functions:

  • Reflects and deflects heat to improve energy efficiency.
  • Controls light penetration and interior comfort.
  • Provides privacy and visual screening.

Secondary Benefits:

  • Enhances building façade aesthetics.
  • Improves temperature regulation for internal spaces.
  • Reduces glare while maintaining outdoor views.

What it Does

Common Use Cases:

  • Residential and commercial window shading.
  • Balconies, patios, and deck enclosures.
  • Upper-level windows requiring solar control.
  • Coastal and high-sun-exposure environments.

Excels In:

  • Buildings seeking passive thermal management.
  • Projects requiring large-span, modular shading solutions.

Configurations Available:

  • Fixed awning (45° or 60° blade angle).
  • Adjustable awning (manual winder control).

Typical Applications

Features and Benefits

FeatureBenefit
Horizontal blade configurationProvides effective shading while maintaining outward visibility.
Adjustable or fixed blade optionsOffers flexibility between consistent and dynamic solar control.
100% aluminium constructionEnsures long-term durability and corrosion resistance.
Double-baked enamel paint finishProvides superior protection against UV and weather exposure.
Modular joining plate systemEnables unlimited width capabilities with seamless joins.
Self-supported projection up to 1400mmAllows for wide coverage without extensive support framing.
Optional protective hood (Bahama)Prevents rain infiltration and protects window openings.
Manual internal or external winderOffers easy control over blade positioning and ventilation.
Variety of blade coloursEnables coordinated design with building exteriors.
Lifetime internal / 25-year external warrantyProvides confidence and long-term value.

Construction

  • Material: 100% aluminium frame and blades.
  • Finish: Double-baked enamel paint for maximum weather resistance.
  • Frame Colour: Standard white.
  • Blade Colours: White, Anvil, Monument, Galaxy, Federation Green, Rivergum, Heritage Red, Beige, Merino, Primrose, Surfmist. Multiple colour combinations available.
  • Assembly: Modular design using joining plates for large spans; stainless steel hardware for corrosion resistance.
  • Certifications: Meets AS 3715 (Powder Coating).

Options & Upgrades

  • Blade Type:
    • Fixed (45° or 60°)
    • Adjustable (manual winder)
  • Mounting Options:
    • Tubular arm support
    • Hat section framing
    • Wall projection brackets
  • Accessories:
    • UV-stabilised clear plastic end caps.
    • Optional Bahama protective hood.
    • Colour-matched trims and fasteners

Limitations of the Product

  • Size Restrictions:
    • Self-supported projection up to 1400mm.
    • Modular width capability (unlimited with joining plates).
  • Environmental Considerations:
    • Regular cleaning required for coastal environments.
  • Performance Boundaries:
    • Not designed for heavy snow or cyclonic conditions.
  • Unsuitable Applications:
    • Areas requiring full weatherproofing or retractable awnings

What’s the Warranty

  • Internal Installations: Lifetime warranty.
  • External Installations: 25-year warranty.
  • Coverage Includes: Structural integrity, finish, and manufacturing defects.
  • Excludes: Improper installation, neglect, or damage from external impact.
  • Customer Responsibilities: Clean and inspect every six months, particularly in coastal or industrial areas.

How It Is Measured

  • Measurement Points:
    • Width and projection based on window span and desired coverage.
  • Tools Required: Laser measurer, steel tape, and level.
  • Common Mistakes:
    • Not accounting for projection arm length.
    • Measuring before finalising wall finishes.
  • Special Notes:
    • Include 150mm overlap beyond window opening for optimal coverage.

How It Is Installed

  • Preparation: Verify surface condition and projection spacing.
  • Sequence:
    • Install tubular arms or hat sections.
    • Fix awning frame to supports.
    • Secure blade assembly and set angle (if fixed).
    • Attach control mechanism (if adjustable).
    • Seal or cap exposed fixings.
  • Tools & Fixings: Drill, rivet gun, silicone sealant, and stainless fasteners.
  • Safety: Follow PPE and safe ladder usage.
  • Application Notes:
    • Recommended to align with sun exposure for optimal heat reflection.

Compliance & Legal Requirements

  • Relevant Standards:
    • AS 3715 (Powder Coating)
  • Building Code: Complies with NCC energy efficiency and external shading standards.

Lead Time & Availability

  • Standard Lead Time: 10–15 working days.
  • Seasonal Variation: Up to 20 working days in peak demand periods.
  • Factors Affecting Lead Time: Custom colour selections, modular spans, or adjustable configurations.
  • Quick-Ship Options: Standard fixed models in white available within 7 working days.
