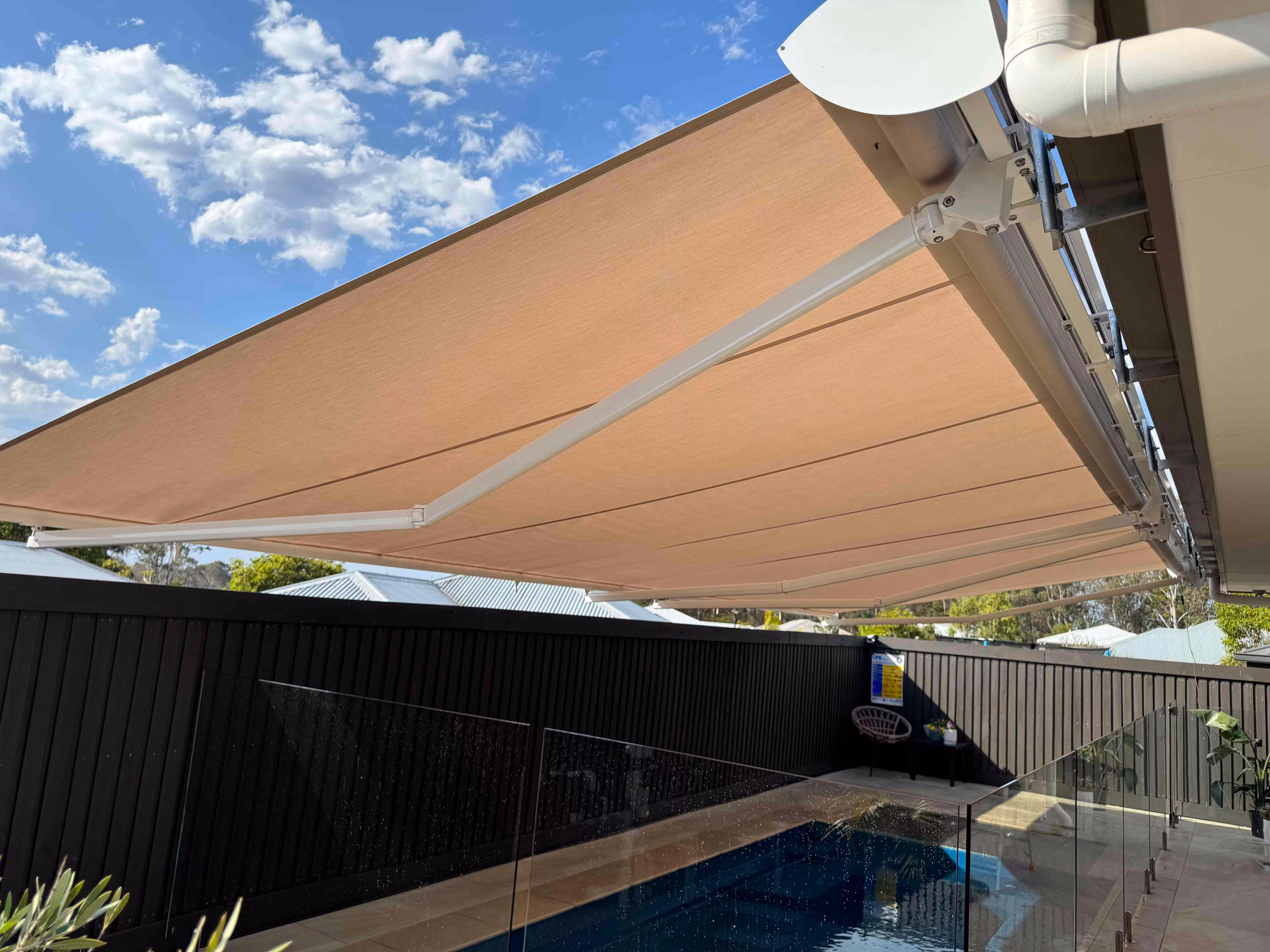

Australia R-90 Folding Arm Awning

What It Is

The Australia R-90 Folding Arm Awning is a premium outdoor shading system combining Italian design with Australian manufacturing excellence. It’s built to endure the country’s harsh environmental conditions while offering a refined aesthetic suitable for both residential and commercial applications.

Category: Outdoor Awnings – Folding Arm Series

Unique Identifiers: Balteus Arm Technology with three times the life expectancy of standard chain systems, integrated front-bar gutter for rain displacement, and multiple motorisation and control options.

scaled_R-90 FAA
scaled_1000010170
scaled_1000010170
r-90

Primary Functions:

  • Provides retractable shade and UV protection.
  • Expands outdoor living and entertainment areas.
  • Offers flexible, motorised or manual control for convenient operation.

Secondary Benefits:

  • Reduces glare, heat, and UV exposure.
  • Enhances architectural design with sleek, durable finishes.
  • Protects outdoor furniture and fittings from sun exposure.

What it Does

Common Use Cases:

  • Residential patios, decks, and courtyards.
  • Commercial cafés, restaurants, and storefronts.
  • Balconies and alfresco dining areas.

Excels In:

  • Large, open outdoor spaces requiring robust, extendable shade.
  • Applications needing long projection and precision-engineered arms.

Configurations Available:

  • Single or linked multi-unit systems.
  • Manual crank operation.
  • Motorised operation (remote or app-controlled).

Typical Applications

Features and Benefits

FeatureBenefit
Balteus Arm TechnologyExtends lifespan up to three times longer than standard chain arm systems.
Integrated front-bar gutterEfficiently channels and displaces rainwater to protect outdoor areas.
Customer-adjustable pitch control (5°–60°)Allows perfect angle adjustment for changing sun positions.
Motorised or manual operationProvides convenient flexibility to suit different user preferences.
LED lighting upgrade availableEnhances nighttime usability and ambience.
Smart control via Pulse 2 Wi-Fi HubEnables app-based or voice control for modern automation.
Heavy-duty extruded aluminium frameEnsures superior strength and stability in Australian conditions.
Colourbond or extruded hood optionsProtects the awning mechanism from weather damage.
Stylish front bar with valance optionsAdds visual refinement to suit architectural styles.
5-year hardware warrantyEnsures long-term reliability and customer confidence.

Construction

  • Frame Material: Extruded aluminium, powder-coated for corrosion resistance.
  • Arms: Balteus arm system with reinforced components for extended life.
  • Front Bar: Heavy extruded aluminium with integrated gutter.
  • Roller Tube: 70mm galvanised (up to 5m) or 78mm for spans beyond 5m.
  • Base Bar: 40mm x 40mm square profile for superior rigidity.
  • Fixings: Stainless steel for longevity in coastal environments.

Options & Upgrades

  • Operation Modes:
    • Manual crank (7:1 gearbox standard).
    • Motorised operation with Push 5-channel or Paradigm 15-channel remote.
    • Smart control via Pulse 2 Wi-Fi Hub (mobile app and voice control).
  • Automation Add-ons:
    • Wind & Light sensor or Motion sensor.
  • Frame Colours: Black, White, Grey, Ivory.
  • Hood Options: Colourbond (Gloss White, Primrose, Black, Stone Beige) or Extruded Aluminium.
  • Valance Designs: Two optional front-bar valance styles.
  • LED Arm Lighting: Integrated into Balteus arms (optional).

Limitations of the Product

  • Size Restrictions:
    • Maximum single awning width: 7,000mm.
    • Maximum projection: 3,600mm.
    • Linked units up to 10,000mm width.
  • Environmental Considerations:
    • Not suitable for operation in high winds or storms.
    • Designed for shade, not heavy rain protection.
  • Performance Boundaries:
    • Requires secure mounting surface capable of supporting load.
  • Unsuitable Applications:
    • Fully enclosed or permanent weatherproof structures.

What’s the Warranty

  • Hardware Warranty: 5-year hardware warranty.
  • Fabric Warranty: Manufacturer’s warranty.
  • Coverage Includes: Frame, arms, and operating mechanism.
  • Excludes: Fabric fading or damage caused by incorrect use or wind.
  • Customer Responsibilities: Retract awning during strong wind and storms, keep clean, and inspect fixings annually.

How It Is Measured

  • Measurement Points:
    • Width: Bracket-to-bracket.
    • Projection: Wall to front bar when fully extended.
  • Tools Required: Laser measurer, level, and tape.
  • Common Mistakes:
    • Failing to allow for arm clearance.
    • Measuring fabric area instead of structural width.
  • Special Notes:
    • Consider wall height for desired pitch range and arm clearance.

How It Is Installed

  • Preparation: Verify structural integrity of mounting surface.
  • Installation Sequence:
    • Secure wall brackets.
    • Mount torsion bar and attach arms.
    • Install roller tube and front bar.
    • Adjust pitch and test operation.
    • Connect motor, sensors, and lighting (if applicable).
  • Tools & Fixings: Drill, torque wrench, level, stainless fixings.
  • Safety: Follow working-at-heights procedures and ensure power isolation for motorised installs.
  • Application Notes:
    • Adjust pitch (5°–60°) for optimal sun coverage and water runoff.
    • Test automation before handover.

Compliance & Legal Requirements

  • Relevant Standards:
    • AS/NZS 1170.2 (Wind Load).
    • AS 4178 (Outdoor Fabric Performance).
    • AS 3715 (Powder Coating).
  • Building Code: Meets NCC compliance for external shading structures.
  • Council Approvals: Generally not required unless altering building structure.

Lead Time & Availability

  • Standard Lead Time: 10–15 working days.
  • Seasonal Variation: May extend to 20 working days in peak demand.
  • Factors Affecting Lead Time: Custom colours, automation components, LED upgrades.
  • Quick-Ship Options: Standard configurations available within 7 working days.
